Lidl / Silvercrest Zigbee Gateway — Hardware Overview

This section provides a detailed breakdown of the Lidl Silvercrest Zigbee gateway's hardware. It includes component identification, debug interface pinout, and serial specifications to help you understand and repurpose the device.

🧱 Physical Construction

  • Screwless case held by 8 plastic clips evenly distributed along the edges
  • Clips require careful prying to open the lid
  • Single PCB housing all components

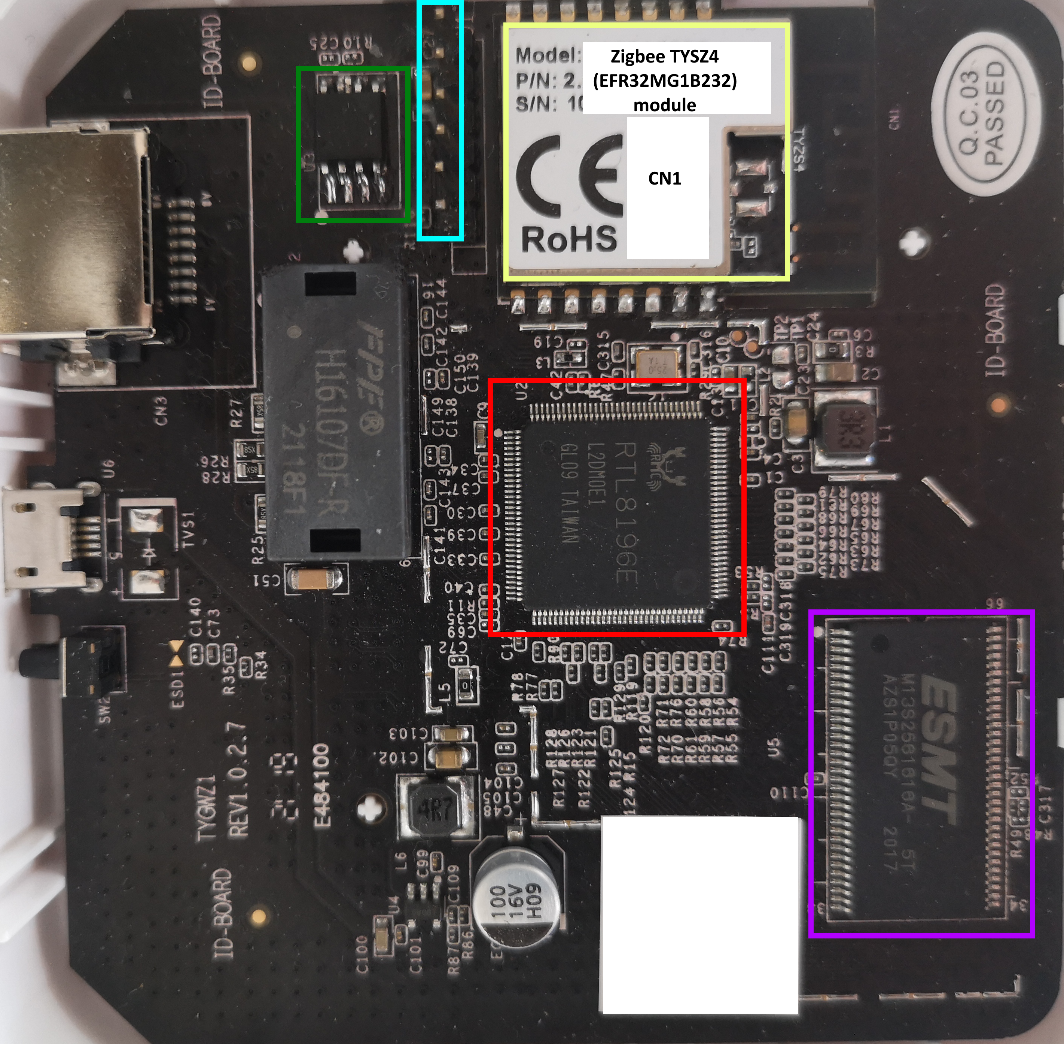

📸 Main PCB Overview

Lidl gateway board

🔩 Main Components

1. Main Processor (U2) — Red Box

  • SoC: Realtek RTL8196E
  • 32-bit Lexra RLX4181 core (MIPS32-compatible, big-endian)
  • Lacks unaligned memory access; uses MIPS16e compressed instructions
  • Runs at 400 MHz
  • Embedded Ethernet switch with 3 logical interfaces: eth0, eth1, and peth0 (virtual)
  • Serial: two 16550A-compatible UARTs at MMIO addresses 0x18002000 and 0x18002100
  • SPI controller used to access external NOR flash

2. Flash Memory (U3) — Green Box

  • 16MB SPI NOR Flash (GD25Q127)
  • 64KB erase blocks
  • Stores bootloader, Linux kernel, SquashFS rootfs, and JFFS2 persistent data

3. RAM (U5) — Purple Box

4. Zigbee Module (CN1) — Yellow Box

  • Tuya TYZS4
  • Based on Silicon Labs EFR32MG1B232F256GM48
  • ARM Cortex-M4 core with integrated Zigbee stack
  • Connected to RTL8196E via UART1
  • Hosts the Zigbee firmware (typically NCP/UART)

5. Debug/Programming Interface (J1) — Cyan Box

  • Combined serial + SWD debug port
  • Not populated by default (2.54mm header needed)
  • Pinout:
    Pin 1: 3.3V VCC (bottom)
Pin 2: Ground
Pin 3: U2 Serial TX
Pin 4: U2 Serial RX
Pin 5: Zigbee module SWDIO
Pin 6: Zigbee module SWCLK

🔌 Serial Port Specifications

  • Logic level: TTL 3.3V
  • Baud rate: 38400 bps
  • Configuration: 8 data bits, no parity, 1 stop bit (8N1)

🧩 Additional Components

  • Ethernet magnetics
  • Status LEDs:
  • Ethernet activity
  • Zigbee communication
  • Clearly labeled test points on PCB (Side B)
  • Supporting discrete components (caps, resistors, etc.)

🧠 Design Summary

  • Clean, well-structured single-board design
  • Minimalist layout with clearly separated domains (SoC / Zigbee)
  • Accessible debug interface and test points for hardware hacking
  • Suitable for firmware customization and hardware-based reverse engineering
