Backup & Restore — Flash Memory (GD25Q128C, 16 MiB)¶

The gateway's GD25Q128C SPI flash stores the bootloader, kernel, rootfs, and userdata. This guide covers three backup/restore methods depending on your situation.

Warning: Flashing can permanently damage the device. Always verify your backups before modifying anything.

Which method?¶

Method	When to use	Requirements
1. SSH (`backup_gateway.sh`)	Gateway boots into Linux	Ethernet + SSH access
2. Bootloader (FLR/FLW)	Linux is broken, or preventive backup	Serial console + TFTP
3. SPI programmer	Bootloader is corrupted	Desolder flash chip

Method 1 is recommended — it works with both custom firmware (SSH:22) and original Tuya firmware (SSH:2333).

Method 1 — SSH backup via `backup_gateway.sh`¶

The unified script at the repository root auto-detects the firmware type and dumps all partitions via SSH:

./backup_gateway.sh                                    # auto-detect everything
./backup_gateway.sh --linux-ip 192.168.1.71            # different gateway IP
./backup_gateway.sh --output /tmp/my-backup            # custom output directory

Output: backups/YYYYMMDD-HHMM/ containing fullflash.bin, individual mtdX_name.bin files, and backup.log.

To restore a backup, use restore_gateway.sh (guides through TFTP upload + FLW).

Method 2 — Bootloader (FLR + TFTP)¶

Use this when Linux doesn't boot. Requires a serial console (3.3V UART, 38400 8N1).

Entering bootloader mode¶

From Linux (SSH):

ssh root@192.168.1.88 boothold

From serial console: power on the gateway and press ESC repeatedly until the <RealTek> prompt appears.

Full flash backup¶

On the serial console, read the entire flash (16 MiB) into RAM:

RealTek>FLR 80500000 00000000 01000000
(Y)es , (N)o ? --> Y
Flash Read Succeeded!

Then download it from your host:

tftp -m binary 192.168.1.6 -c get fullflash.bin

The file must be exactly 16,777,216 bytes. Verify with md5sum fullflash.bin.

Full flash restore¶

Upload the image from your host:

tftp -m binary 192.168.1.6 -c put fullflash.bin

Write it to flash (overwrites everything):

RealTek>FLW 00000000 80500000 01000000

Per-partition backup/restore¶

FLR reads flash into RAM, FLW writes RAM to flash:

FLR <ram_addr> <flash_offset> <size>
FLW <flash_offset> <ram_addr> <size>

Custom firmware (4 partitions):

MTD	Description	FLR	FLW
mtd0	Bootloader + Config	`FLR 80500000 00000000 00020000`	`FLW 00000000 80500000 00020000`
mtd1	Kernel	`FLR 80500000 00020000 001E0000`	`FLW 00020000 80500000 001E0000`
mtd2	Rootfs	`FLR 80500000 00200000 00200000`	`FLW 00200000 80500000 00200000`
mtd3	JFFS2 Userdata	`FLR 80500000 00400000 00C00000`	`FLW 00400000 80500000 00C00000`

Original Lidl/Tuya firmware (5 partitions):

MTD	Description	FLR	FLW
mtd0	Bootloader + Config	`FLR 80500000 00000000 00020000`	`FLW 00000000 80500000 00020000`
mtd1	Kernel	`FLR 80500000 00020000 001E0000`	`FLW 00020000 80500000 001E0000`
mtd2	Rootfs	`FLR 80500000 00200000 00200000`	`FLW 00200000 80500000 00200000`
mtd3	Tuya Label	`FLR 80500000 00400000 00020000`	`FLW 00400000 80500000 00020000`
mtd4	JFFS2 Overlay	`FLR 80500000 00420000 00BE0000`	`FLW 00420000 80500000 00BE0000`

For each partition: FLR to read into RAM, then tftp get to download. To restore: tftp put, then FLW.

Method 3 — SPI programmer (CH341A)¶

Use this only if the bootloader is corrupted and the gateway is completely unresponsive. Requires desoldering the SPI flash chip.

Hardware¶

CH341A USB SPI programmer (use the 25xx entry)
SOP8 to 200 mil DIP adapter
Flux and desoldering braid or pump

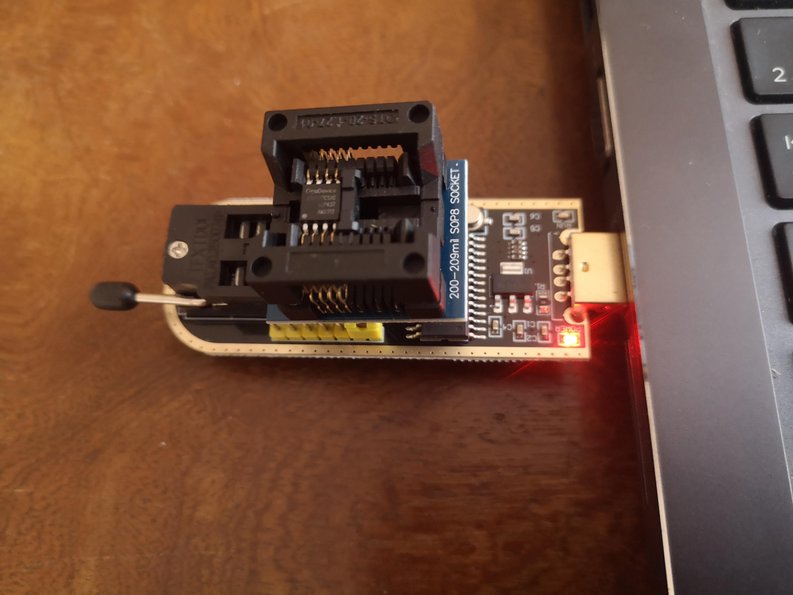

CH341A programmer

A programming clip does not work on this board.

Detect the chip¶

flashrom -p ch341a_spi -c GD25Q128C

Expected output:

Found GigaDevice flash chip "GD25Q128C" (16384 kB, SPI) on ch341a_spi.
No operations were specified.

If the chip is not detected, check your connections and install the latest version from flashrom.org.

Read (backup)¶

flashrom -p ch341a_spi -c GD25Q128C -r fullflash.bin

Write (restore)¶

flashrom -p ch341a_spi -c GD25Q128C -w fullflash.bin

Ensure fullflash.bin is exactly 16 MiB. The operation takes a few minutes.

Scripts¶

Script	Description
`../../backup_gateway.sh`	Unified backup — auto-detects gateway state, dumps all partitions via SSH
`../../restore_gateway.sh`	Restore a fullflash.bin — guides through LOADADDR + FLW
`split_flash.sh`	Split a 16 MiB backup into individual partition files
`scripts/restore_mtd_via_ssh.sh`	Restore partitions via SSH (original firmware only)

split_flash.sh¶

./split_flash.sh fullflash.bin              # custom firmware (4 partitions, default)
./split_flash.sh fullflash.bin lidl         # original Lidl/Tuya (5 partitions)

Creates mtd0_boot+cfg.bin, mtd1_kernel.bin, mtd2_rootfs.bin, etc. next to the input file.
