Backup, Flash and Restore Procedure

Overview

This guide covers the EFR32 Zigbee radio chip firmware, not the main Linux system running on the RTL8196E SoC. Every supported gateway contains two separate processors:

• RTL8196E (main SoC): Runs Linux 6.18 with the in-kernel rtl8196e-uart-bridge driver exposing the EFR32 UART on TCP:8888
• EFR32 (Zigbee radio): Runs the EmberZNet/EZSP firmware covered here — an EFR32MG1B232F256GM48 on the Lidl Silvercrest board, an EFR32MG13P732F512IM32 on the Sengled Smart Hub G4

Before modifying the Zigbee radio firmware, it is strongly recommended to back up the original firmware. This ensures you can recover in case of a failed update or configuration error.

This guide describes two main methods:

Method	Use Case	Hardware Required
Method 1: SWD	Full backup/restore, recovery from brick	J-Link debugger
Method 2: UART	Routine firmware updates	None (network only)

Important: Backing up the original firmware requires a hardware debugger (Method 1). The software method (Method 2) can only flash new firmware, not read or back up existing firmware. If you want to preserve the original Lidl or Sengled radio firmware before experimenting, you must use a J-Link or compatible SWD debugger.

---

Firmware File Types

Format	Description	Use Case
.bin	Raw flash dump, byte-for-byte	Full backup/restore via SWD
.s37	Motorola S-Record (ASCII)	Development, some bootloaders
.gbl	Gecko Bootloader Image (compressed)	UART updates via bootloader

Important: For full backup or recovery, always use .bin. The .gbl format only works when the Gecko Bootloader is intact and cannot restore the bootloader itself.

---

Method 1: Hardware Backup, Flash & Restore via SWD

Requirements

• An RTL8196E gateway with accessible EFR32 SWD pins: header J1 on the Lidl Silvercrest board, or the annotated debug pads on the back of the Sengled Smart Hub G4

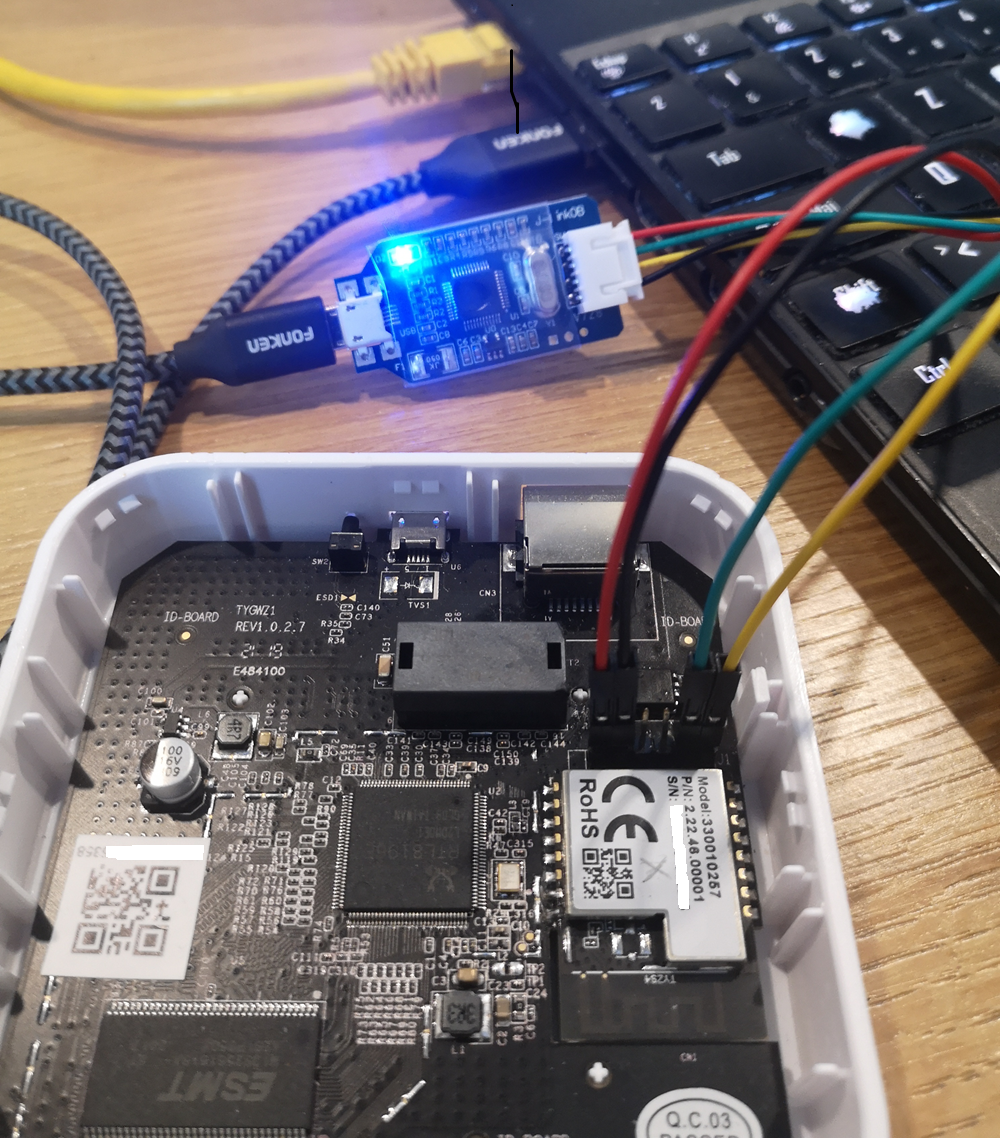

• A J-Link or compatible SWD debugger. I personally use a cheap (less than 5 USD incl shipping) OB-ARM Emulator Debugger Programmer:




A useful investment! You can also build your own debugger with a Raspberry Pico and OpenOCD. Search the web!

• Simplicity Studio V5 with commander tool
• Dupont jumper wires (x4)

Lidl J1 Pinout and Wiring

Gateway Pin	Function	J-Link Pin
1	VREF (3.3V)	VTref
2	GND	GND
5	SWDIO	SWDIO
6	SWCLK	SWCLK

The Sengled G4 does not use the Lidl J1 layout. Use the SWCLK, SWDIO, and GND labels in the annotated Sengled PCB photograph.

Backup Procedure

1. Launch Commander (Windows default path):

   cd "C:\SiliconLabs\SimplicityStudio\v5\developer\adapter_packs\commander"


2. Check Device Connection:

   commander device info --device EFR32MG


3. Read Full Flash (256KB):

   commander readmem --device EFR32MG1B232F256GM48 --range 0x0:0x40000 --outfile original_firmware.bin


4. (Optional) Verify Backup:

   commander verify --device EFR32MG1B232F256GM48 original_firmware.bin


Restore Procedure

commander flash --device EFR32MG1B232F256GM48 firmware.bin

Flashing a .gbl File via SWD

If the Gecko Bootloader is functional:

commander gbl flash --device EFR32MG1B232F256GM48 firmware.gbl

Note: This only works if the bootloader is intact. For full recovery, use .bin.

---

Method 2: Software-Based Flash via UART

This method uses the in-kernel rtl8196e-uart-bridge (6.18 kernel) to expose the EFR32 serial port over TCP, allowing remote firmware updates via the Gecko Bootloader on both supported gateway families.

Limitation: This method only supports .gbl files. For full backup/restore, use Method 1 (SWD).

Use the flash_efr32.sh script at the repository root:

# Lidl Silvercrest (default board)
./flash_efr32.sh -y ncp                    # gateway from gateway.env
./flash_efr32.sh -y ncp 460800             # NCP at non-default baud
./flash_efr32.sh -y -g 10.0.0.5 otrcp      # custom gateway IP, OT-RCP

# Sengled Smart Hub G4: NCP at its board-safe default (115200)
./flash_efr32.sh -y --board sengled-e39-g8c -g 10.0.0.6 ncp

./flash_efr32.sh --help                    # full CLI reference

The Sengled command selects the board-specific -sengled-e39-g8c.gbl image, uses that board's UART flow-control settings, and verifies the live devicetree model before flashing. For Sengled RCP or OT-RCP, omit the baud argument to use the tested board default of 230400.

Firmware aliases: bootloader, ncp, rcp, otrcp, router (numeric 1-5 also accepted). Per-firmware supported bauds are listed in 2-Zigbee-Radio-Silabs-EFR32/README.md.

The script handles everything automatically since v3.1: pulses nRST for a clean chip state, installs universal-silabs-flasher in a venv if needed, switches the in-kernel UART bridge to flash mode (flow_control=0) via SSH, flashes the selected firmware, writes the matching chip identity (FIRMWARE, FIRMWARE_VERSION, FIRMWARE_BAUD) and daemon-routing key (MODE) to /userdata/etc/radio.conf so init scripts arm correctly on next boot AND a future reader can tell what's on the chip without probing it, then reboots. See 3-Main-SoC-Realtek-RTL8196E/34-Userdata/README.md for the full key reference.

Legacy env-var interface (deprecated, kept for v3.0.x compat): FW_CHOICE=2 BAUD_CHOICE=460800 CONFIRM=y ./flash_efr32.sh still works with a deprecation warning.

See 35-Migration for the per-firmware filename pattern table.

---

Understanding universal-silabs-flasher

universal-silabs-flasher is a Python tool by NabuCasa that flashes Silicon Labs chips over UART without a J-Link debugger. It works by communicating with the Gecko Bootloader that is pre-installed on the EFR32.

For a deep dive into how USF works over TCP, why baud rate recovery is tricky, and how flash_efr32.sh handles it, see MEMO-universal-silabs-flasher.md.

Architecture

┌──────────────────────────────────────────────────────────────────────────────┐
│                     universal-silabs-flasher Flow                            │
└──────────────────────────────────────────────────────────────────────────────┘

Your PC                          Gateway                         EFR32
───────                          ───────                         ─────
    │                                │                              │
    │  socket://192.168.1.88:8888     │                              │
    ├───────────────────────────────>│  rtl8196e-uart-bridge        │
    │                                │        (TCP↔UART, kernel)    │
    │                                │                              │
    │  1. Probe firmware type        │                              │
    │  ─────────────────────────────>│──────────────────────────────>
    │                                │                              │
    │                                │<─────── Response ────────────│
    │  <─ Detects firmware type      │                              │
    │                                │                              │
    │  2. Request bootloader mode    │                              │
    │  ─────────────────────────────>│──────────────────────────────>
    │                                │       (method depends on     │
    │                                │        firmware type)        │
    │                                │                              │
    │                                │<── EFR32 reboots into ───────│
    │                                │    Gecko Bootloader          │
    │                                │                              │
    │  3. Upload firmware (Xmodem)   │                              │
    │  ─────────────────────────────>│──────────────────────────────>
    │         .gbl file chunks       │                              │
    │                                │                              │
    │  4. Bootloader writes flash    │                              │
    │                                │<────── ACK/progress ─────────│
    │                                │                              │
    │  5. Bootloader reboots         │                              │
    │                                │<── New firmware running ─────│
    │                                │                              │
    └────────────────────────────────┴──────────────────────────────┘

Firmware Type Detection

The flasher automatically detects what's currently running on the EFR32 and uses the appropriate method to enter the bootloader:

Firmware Type	How Detected	Bootloader Entry Method
Gecko Bootloader	Responds to menu commands (1, 2, 3)	Already in bootloader, proceed to Xmodem
NCP (EZSP)	Responds to EZSP protocol frames	EZSP launchStandaloneBootloader command
RCP (CPC)	Responds to CPC protocol frames	CPC bootloader reset command
Router	Responds stack ver. [x.x.x] to version	CLI command bootloader reboot

This means you can flash any firmware type without knowing what's currently running. The flasher will figure it out.

Probe Output Examples

NCP firmware (EZSP):

Probing ApplicationType.GECKO_BOOTLOADER at 115200 baud
Probing ApplicationType.EZSP at 115200 baud
Detected ApplicationType.EZSP, version '7.5.1.0 build 188'

RCP firmware (CPC):

Probing ApplicationType.GECKO_BOOTLOADER at 115200 baud
Probing ApplicationType.CPC at 115200 baud
Detected ApplicationType.CPC, version 'RCP v5.0.0'

Router firmware:

Probing ApplicationType.GECKO_BOOTLOADER at 115200 baud
Probing ApplicationType.ROUTER at 115200 baud
Detected ApplicationType.ROUTER, version 'stack ver. [7.5.1.0]'

Already in bootloader:

Probing ApplicationType.GECKO_BOOTLOADER at 115200 baud
Detected ApplicationType.GECKO_BOOTLOADER at 115200 baud

The flow_control sysfs param Explained

The Gecko Bootloader runs its Xmodem path with no flow control, while normal firmware operation on the Lidl gateway (NCP, RCP) requires hardware flow control (RTS/CTS).

Bridge state	flow_control	Flow Control	When to Use
normal	1 / hw (default)	Hardware (RTS/CTS)	Normal operation (Z2M, ZHA) on the Lidl board
normal (sw)	2 / sw	Software (XON/XOFF, handled by the bridge)	Boards without RTS/CTS wiring + NCP-UART-SW firmware (bridge v1.2, kernel 6.18)
flash	0 / none	None	Flashing via bootloader (always 0 — Xmodem payloads contain raw XON/XOFF bytes)

Readback of the knob is always numeric (0/1/2). Write the value to the sysfs knob — the bridge stays armed, TCP:8888 never drops:

echo 0 > /sys/module/rtl8196e_uart_bridge/parameters/flow_control   # flash mode
echo 1 > /sys/module/rtl8196e_uart_bridge/parameters/flow_control   # normal

flash_efr32.sh does this automatically and restores flow_control=1 on exit.

Why flashing fails with flow_control=1:

Normal mode (hardware flow control):
┌─────────────┐     RTS/CTS     ┌─────────────┐
│ kernel      │<───────────────>│   EFR32     │
│ UART bridge │                 │ (bootloader)│
└─────────────┘                 └─────────────┘
                                      │
                  Bootloader ignores RTS/CTS
                  → Xmodem responses blocked!
                  → Timeout → FailedToEnterBootloaderError

With flow_control=0 (no flow control):
┌─────────────┐      TX/RX      ┌─────────────┐
│ kernel      │<───────────────>│   EFR32     │
│ UART bridge │   (no RTS/CTS)  │ (bootloader)│
└─────────────┘                 └─────────────┘
                                      │
                  Xmodem works correctly
                  → Flash succeeds!

Flash Process Step-by-Step

1. Probe: Flasher sends protocol-specific commands to identify firmware
2. Bootloader entry: Sends appropriate command based on detected type
3. Wait for bootloader: EFR32 reboots, bootloader sends menu
4. Xmodem upload: Firmware is sent in 128-byte blocks with checksums
5. Verification: Bootloader validates the .gbl signature
6. Reboot: Bootloader launches the new firmware

Common Errors

Error	Cause	Solution
FailedToEnterBootloaderError	HW flow control blocking bootloader	Write 0 to flow_control sysfs param
Failed to probe running application	Device not responding	Power cycle gateway, check IP
Xmodem timeout	Network latency or other process using port	Use wired Ethernet, close SSH sessions
GBL signature verification failed	Corrupt or incompatible firmware	Re-download firmware, check SDK version

Session Conflicts

Important: Close all SSH sessions before flashing.

If you have an SSH session with an active nc or previous flasher run connected to port 8888, the new flasher instance will conflict:

# Bad: existing connection blocks new flasher
Terminal 1: ssh gateway → nc localhost 8888  (still open!)
Terminal 2: universal-silabs-flasher ...     (fails!)

# Good: close the nc session and put the bridge in flash mode
Terminal 1: ssh gateway → killall nc
           → echo 0 > /sys/module/rtl8196e_uart_bridge/parameters/flow_control
Terminal 2: universal-silabs-flasher ...     (works!)

---

Quick Reference

Flash via UART (most common)

# Lidl Silvercrest (default board)
./flash_efr32.sh -y ncp                    # NCP @ default baud, default IP
./flash_efr32.sh -y ncp 460800             # NCP @ 460800
./flash_efr32.sh -y -g 10.0.0.5 otrcp      # OT-RCP, custom IP

# Sengled Smart Hub G4 (board-specific image and safe defaults)
./flash_efr32.sh -y --board sengled-e39-g8c -g 10.0.0.6 ncp

./flash_efr32.sh --help                    # full CLI reference

Full backup via SWD

commander readmem --device EFR32MG1B232F256GM48 --range 0x0:0x40000 --outfile backup.bin

Full restore via SWD

commander flash --device EFR32MG1B232F256GM48 backup.bin

---

Resources

• Simplicity Commander Reference Guide (PDF)
• universal-silabs-flasher GitHub
• EFR32MG1B Series Datasheet
• Gecko Bootloader User Guide
